Ferrari F138 technical specs

Chassis

Carbon-fibre and honeycomb composite structure
Ferrari longitudinal gearbox
Limited-slip differential
Semiautomatic sequential electronically
Controlled gearbox – quick shift
Number of gears: 7 + Reverse
Brembo ventilated carbon-fibre disc brakes
Independent suspension, pull-rod activated torsion springs front and rear
Weight with water, lubricant and driver: 642 kg
OZ Wheels (front and rear): 13”

Engine
Type: 056
Number of cylinders: 8
Cylinder block in sand cast aluminium: V 90°
Number of valves: 32
Pneumatic distribution
Total displacement: 2398 cm3
Piston bore: 98 mm
Weight: > 95 kg
Electronic injection and ignition
Fuel: Shell V-Power
Lubricant: Shell Helix Ultra

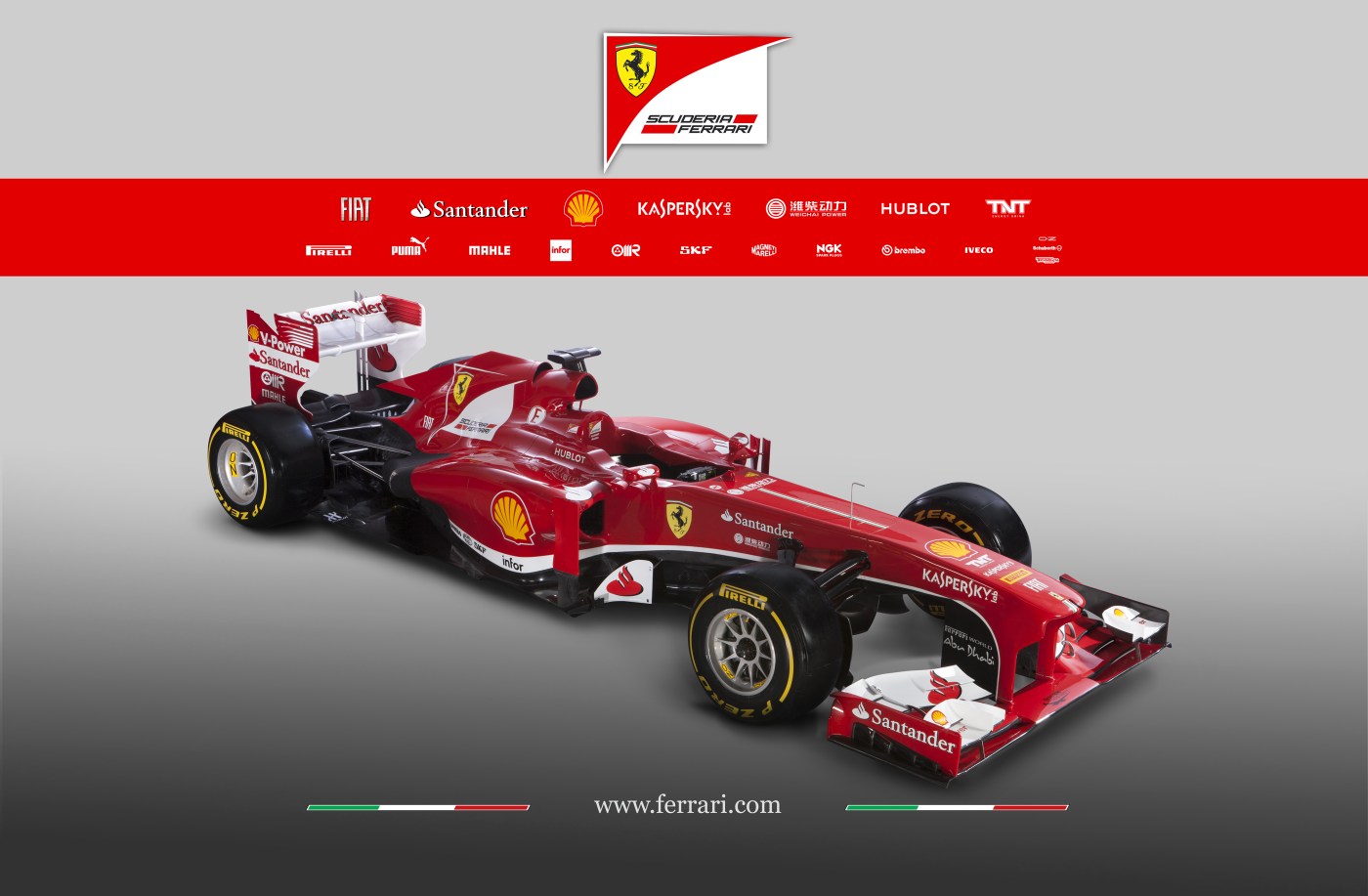

Photos of the new Ferrari F138 are available here.
